After unpacking and removing the instrument, place the PC and reader on a stable surface. Then connect the network cables between the PC and reader, and plug in the power cord.
The RJ54thermoluminescence reader system has been equipped.
Figure 1 RJ54Thermoluminescent Dosimeter Reader
RJ54Thermoluminescent Dosimeter Reader interface:

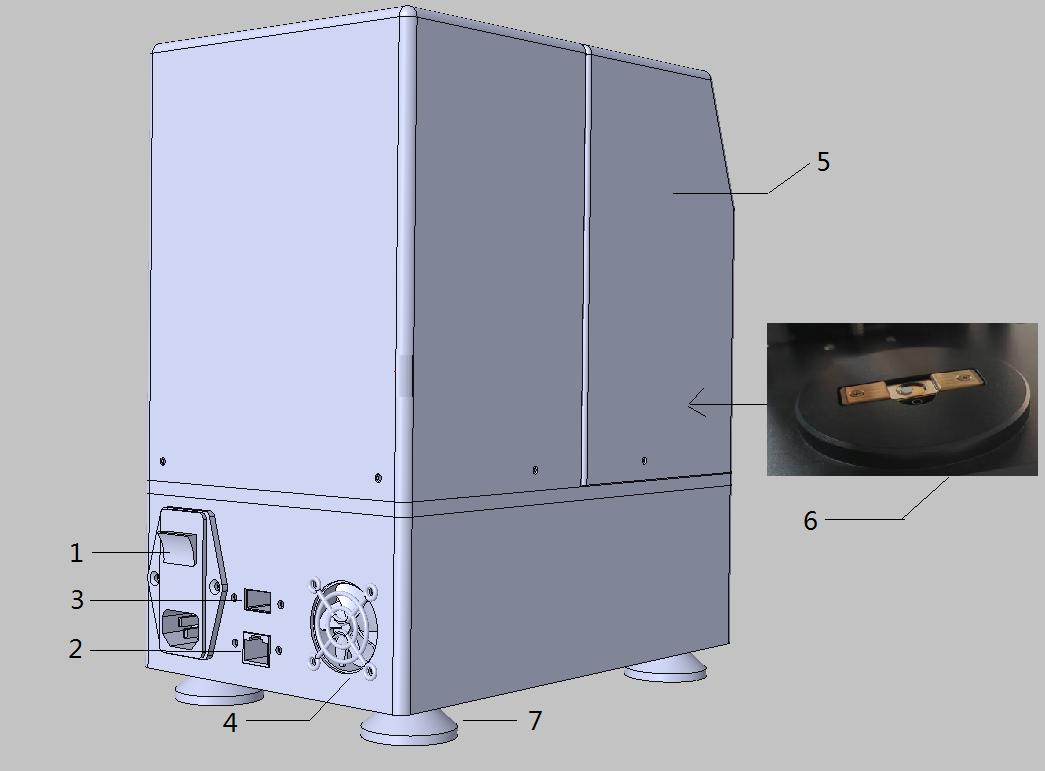

Figure 2: RJ54Thermoluminescence Dosimeter
|
number |
name |
function declaration |
remarks |
|
1 |
main switch | Power on/off | |
|
2 |
RJ45 port | Connect to a PC or LAN switch | internet access |
|
3 |
USB | Communications & Print Information | |
|
4 |
lower cover fan | heat radiation | |
|
5 |
loam cake | Open and close the lid to take and place the dose tablet | |
|
6 |
heating plate | heat, place heating pad | |
|
7 |
foot pad | buffer damping |
Table 1
After unpacking and removing the instrument, place the PC and reader on a stable surface. Then connect the cables between the PC and reader, and plug in the power cord.
The RJ54thermoluminescence dose reader system has been equipped.
RJ54reader
1 PC (Windows 10, with reader web software installed)
Functional Characteristics
• The thermoluminescent dose measurement is accurate, has a wide sensitivity setting range, a wide measurement range, and the photon counter reads automatically.
• The instrument background or detector background is automatically deducted;
• The three-stage heating program can be modified and stored to adapt to different detectors and applications.
• Web-based software to achieve automatic operation measurement and data management and report printing;
• The patented technology of lifting structure makes it convenient for users to pick up and put down the dosage tablets.
Performance Index
⑴ Optical measurement system
• The linear dose measurement range LiF:Mg,Ti: 10-5Gy ～ 8Gy
LiF:Mg,Cu,P: 10-7Gy ～ 12Gy
• Linear deviation ≤10%
• Measurable radiation X, γ, β, Neutron
• Reading time for 1 piece as same as heating time
• Background ≤ 1000 (total counts during background measurement)
⑵ Heating system
• Heating temperature range room temperature ～ 400℃
• Repeatability of temperature ≤1%
• Heating deviation ≤±2℃
• Heating time 0 ～ 60s
• Repeatability of time ≤0.1%
• Heating rate 1 ～ 30℃/s
⑶ Other Specifications
• Supports scanning a barcode with a scanner
• Creates a personal database to manage tasks, personnel, parameters, and dosimetry
• Supports various reports, queries, and storage functions.
• Imports and exports sheets for archiving: You can import the completed personnel information sheet into the software's database in one go according to the specified format, making it convenient and quick.
• PC with Windows 7 or later;
• FNF-TLD: Web Software for Reader
• Working environment indoors
• Storage temperature -10℃ ～ 50℃
• Operating temperature 10℃ ～ 40℃
• Power supply 220V AC ±10%, 50Hz
• Maximum power consumption ≤120W
• No impact or vibration during measurement (relatively stable)
• Avoid direct light exposure to color displays
• Avoid strong electric and magnetic interference
